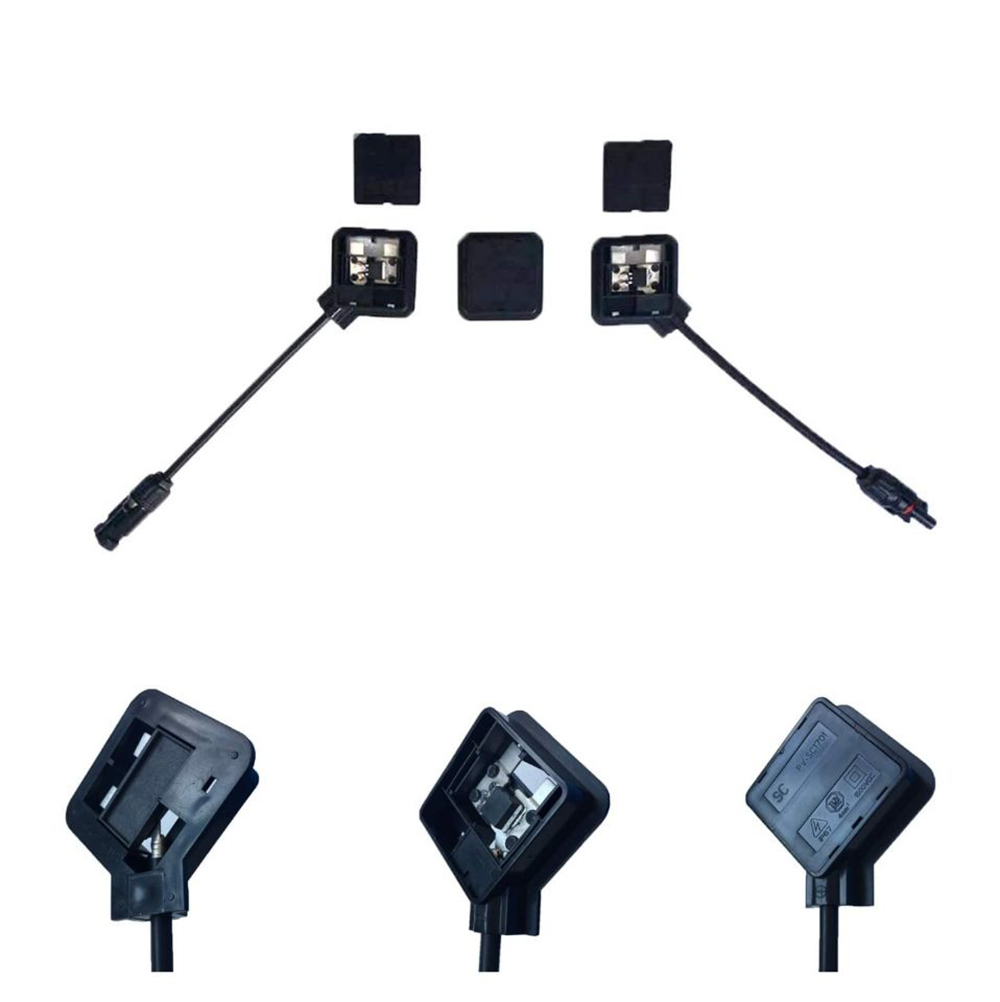

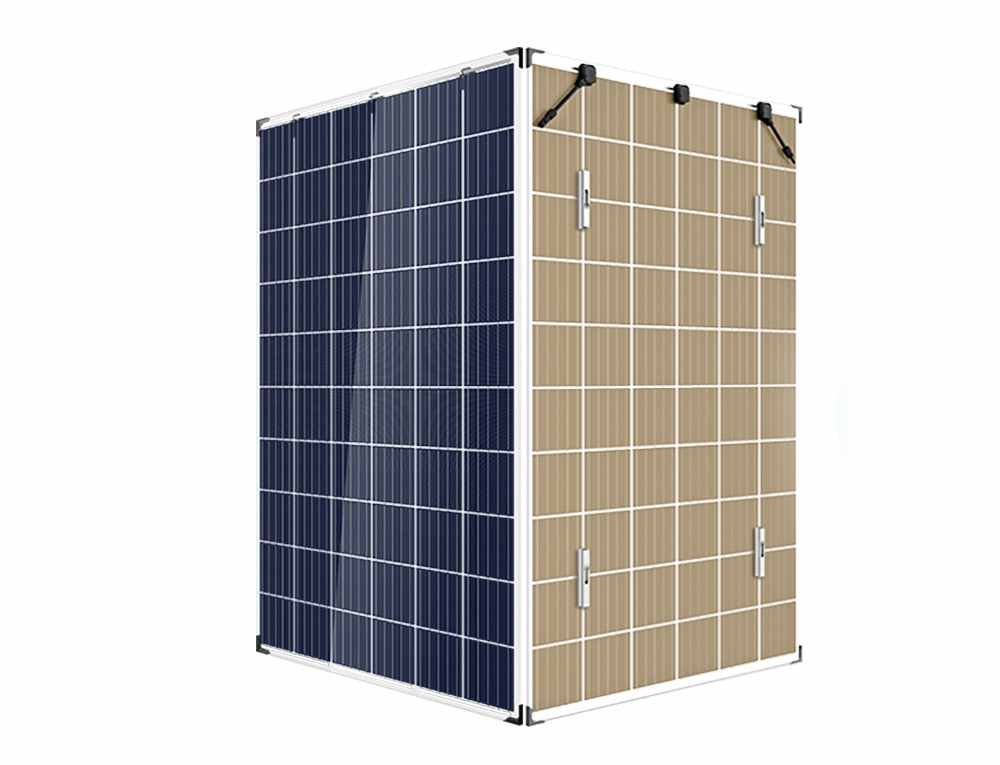

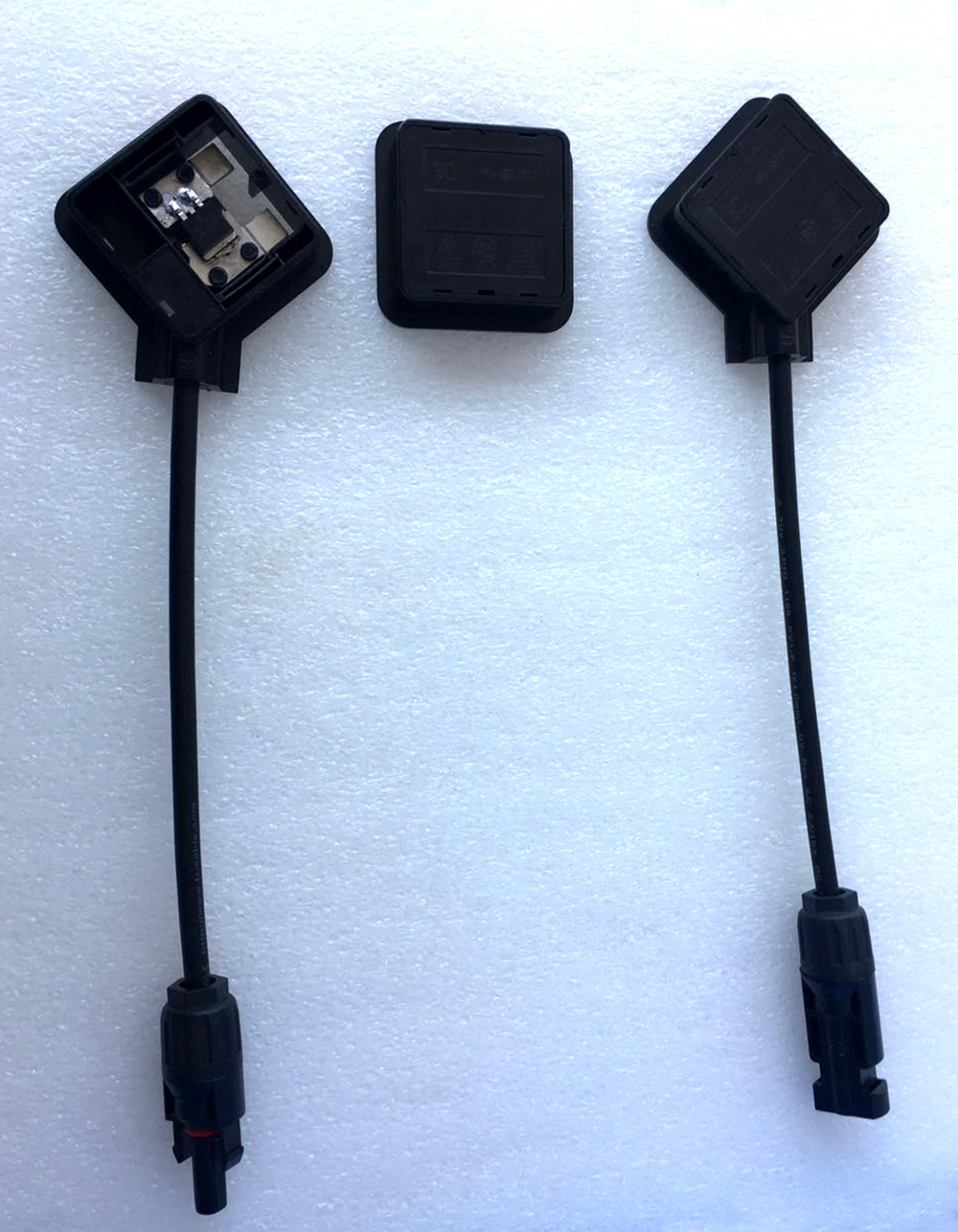

200W~330W High Efficiency transparent double glass Solar Panel junction box
Author： Release time：2019-09-18
|
Specification
|
No. of Terminal
|
No. of Diode
|
Diode Type
|
Distance between terminals
|
|

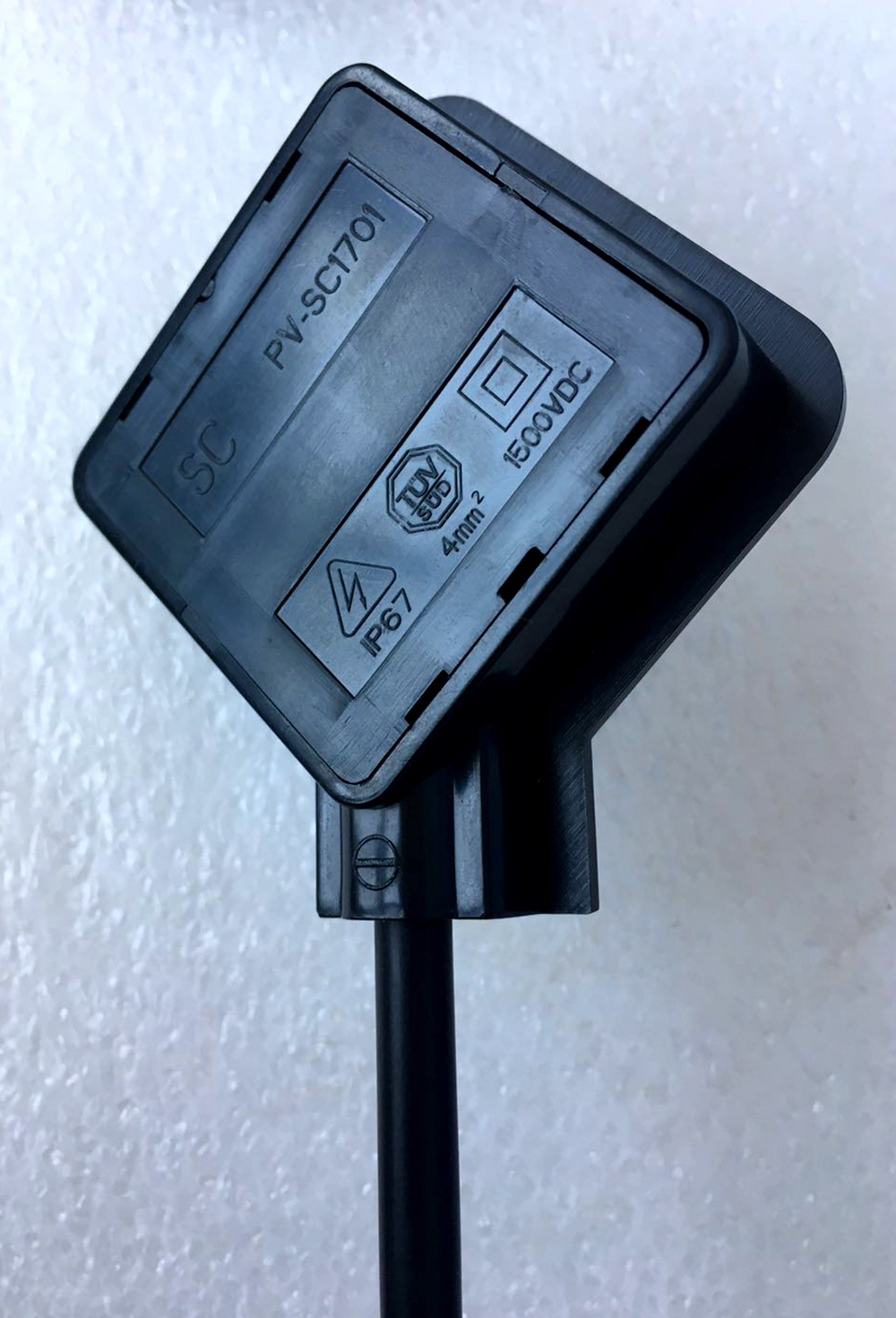

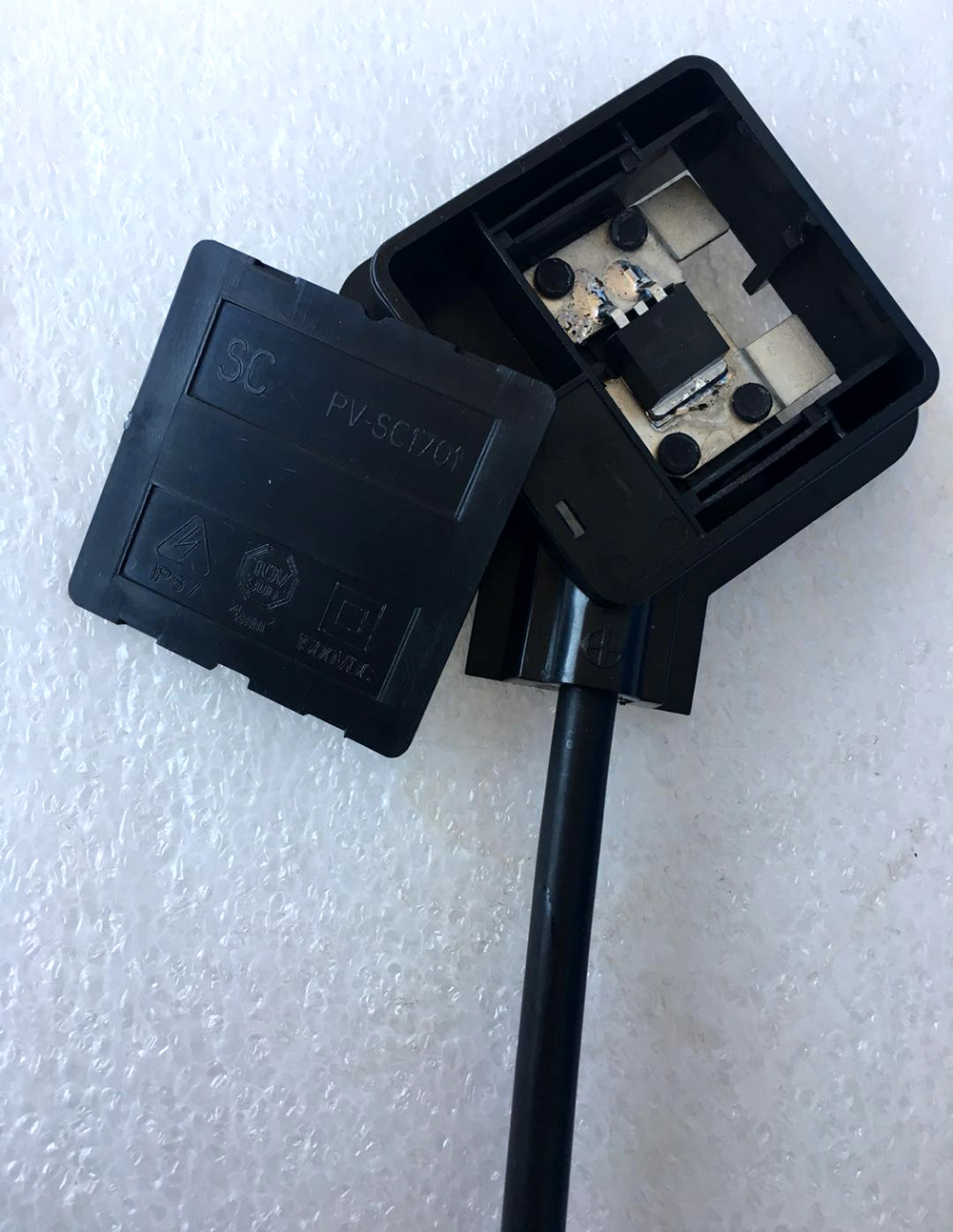

PV-SC1701
|
6
|
3
|
SDA2040
|
20MM
|
|
Technical Date |
|||
|
Certification
|
TUV
|
||
|
Standard
|
EN 50548:2011+A1
|
||
|
Rated Voltage
|
1500VDC
|
||
|
Rated Current
|
12A
|
||
|
Protection Degree
|
IP67
|
||
|
Flame Class
|
UL94-V0
|
||
|
Temperature Range
|
-40℃~+85℃
|
||
|
Waterproofing structure
|
Potting sealing
|
||
|
Width Of Copper Ribbon
|
Up to 8mm
|
||
|
Connection Method
|
Soldring
|
||
|
Insulation Material
|
PPO
|
||
|
Contact Material
|
Copper alloy, Nickel plated
|
||
|

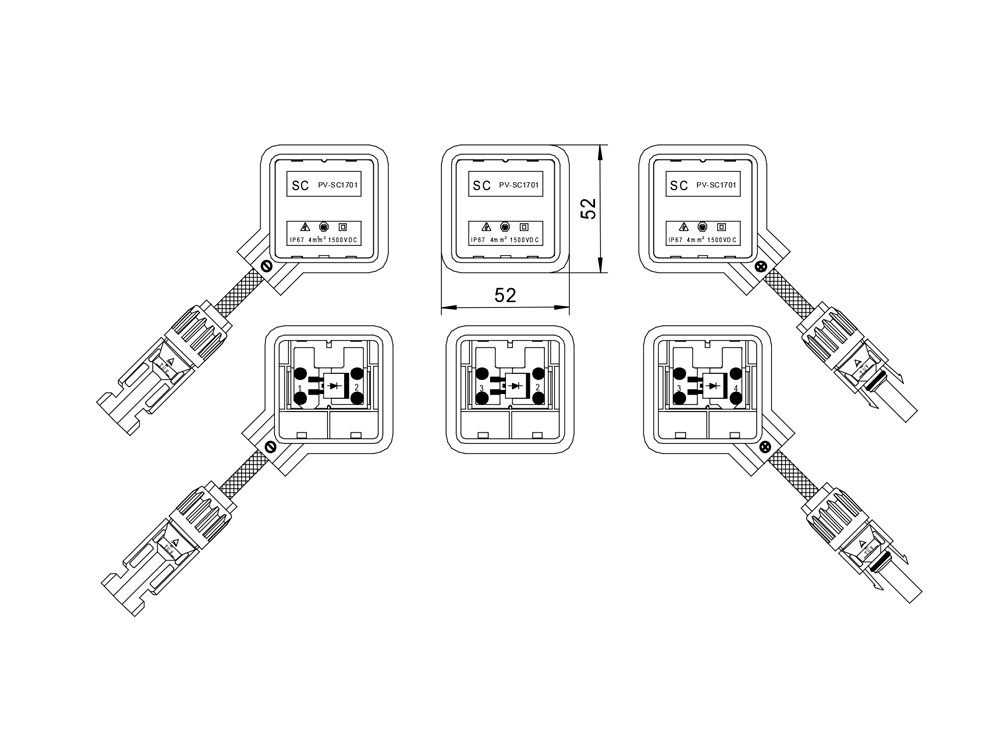

Overall Dimension
|
52 ×53 ×15mm x 3
|
||
|
Bonding Methord
|
Silicon gel
|
||
